DV2-1G80A Over Voltage and Under Voltage Protective Device Relay 80A

Name: DV21G80A Over Voltage and Under Voltage Protective Device Relay 80A
Brand: SUCHEN
Price: 8.52 USD

Place of Origin : Zhejiang, China

Brand Name : SUCHEN

Model Number : DV2-1G80A

Theory : Voltage Relay

Usage : PROTECTIVE

Size : Miniature

Supply terminals : L1-N

Voltage range : 145-300V AC 50-60Hz

Burden : AC max. 1.2VA/0.5W

Upper level (U max) : AC 265V

Bottom level (U min) : AC 175V

Max. permanent : AC 300V

Peak overload<1ms : AC 450V

Electrical strength : 4 kV (supply-output)

Switching voltage : 250V AC1

Operational current : 80A

Packaging Details : 1.Strong Strandard Export Package,Meet The Long-Distance Transportation

Price : $8.52/pieces

Contact Now

DV2-1G80A Over Voltage and Under Voltage Protective Device Relay 80A

Technical parameters

DV2-1G80A Over Voltage and Under Voltage Protective Device Relay 80A

It serves to control supply voltage for appliances sensitive to supply tolerance, protection of the device against under/over voltage.

♦ DV2-1G is fixed settings, DV2-1T is Adjustable settings over/under voltage relay. For difference settings of over/under voltage.

♦ 3-state indication-LEDs indicating normal state and 2 fault states.

♦ Supply from monitored voltage (monitors level of its own supply).

♦ 2-MODULE, DIN rail mounting.

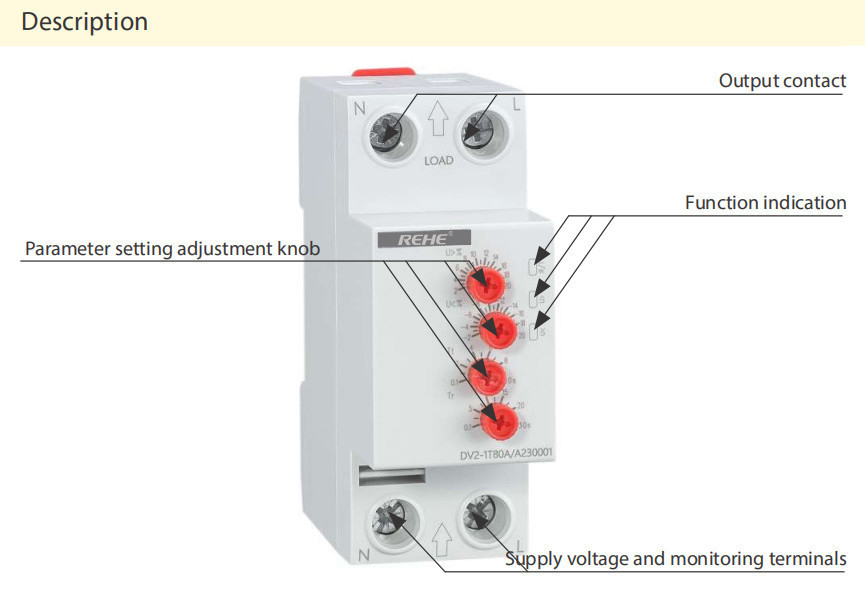

Description

DV2-1G80A Over Voltage and Under Voltage Protective Device Relay 80A

Connection

DV2-1G80A Over Voltage and Under Voltage Protective Device Relay 80A

Symbol

DV2-1G80A Over Voltage and Under Voltage Protective Device Relay 80A

Model

Voltage range

Switching voltage

Operational current

Unit

Price

DV2-1G80A

145-300V

AC 50-60Hz

250V AC1

80A

1PC

$8.52

DV2-1G80A Over Voltage and Under Voltage Protective Device Relay 80A
